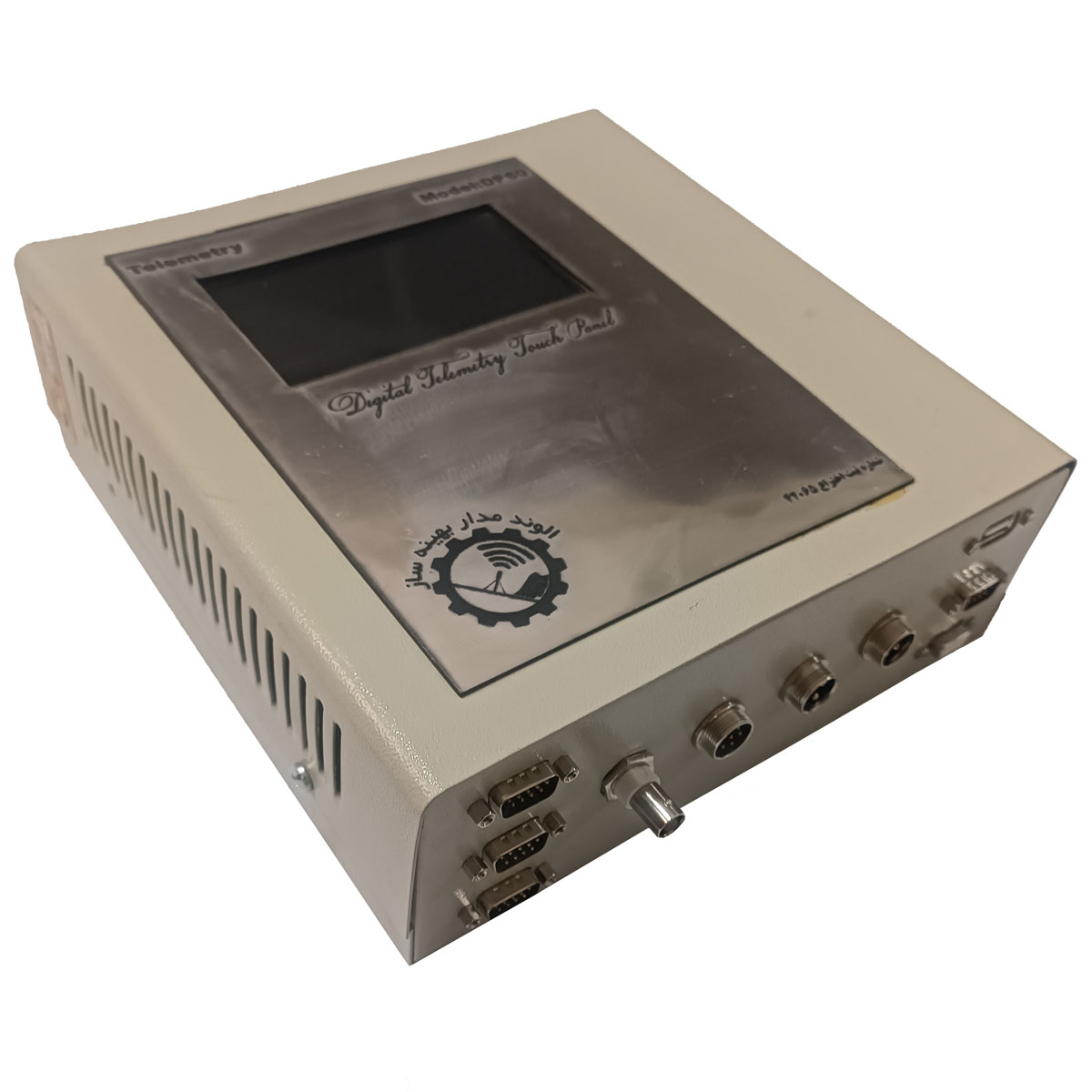

Telemetry model DP60

Device Capabilities:

1. 5″ or 7″ color TFT display
2. Touch screen keypad
3. Graphical closed-loop pump operation display
4. Pump control modes: manual, timer-based, and telemetry—no need for an external timer
5. Intelligent tank control for energy savings across four seasons and three tariff levels
6. Three operating modes:
   • Mod1: Controls pump runtime regardless of tank level
   • Mod2: Controls pump runtime considering tank level during operation
   • Mod3: Controls pump runtime regardless of tank level during peak hours
7. Tank water level display in percentage, liters, or cubic meters
8. Tank type definition (underground or elevated)
9. Pressure sensor installation for monitoring pump line pressure
10. Audible alarm for fault notifications
11. Display of chlorine, pH, temperature, and line pressure when connected to a monitoring device
12. Password protection for device settings
13. Output port for SCADA system integration
14. Pump energy consumption display (kWh) over a 24-hour period
15. Tank level control up to 64 levels via counting method

Model DP60L includes all the above features plus a built-in data logger with graphing capability and reporting of parameters such as time, date, pump status, pressure, and temperature.
